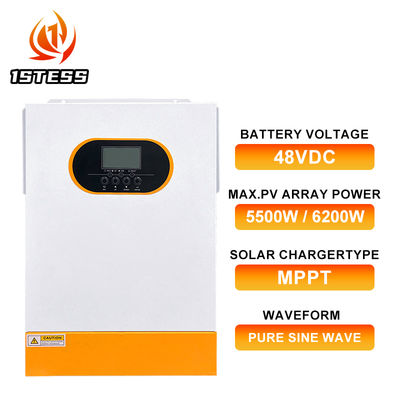

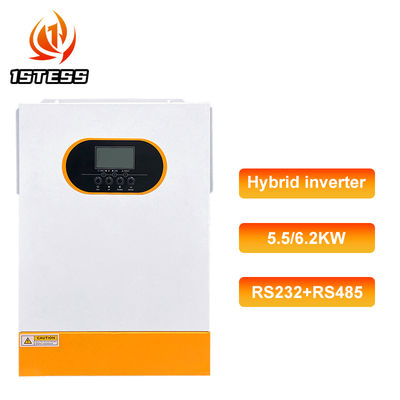

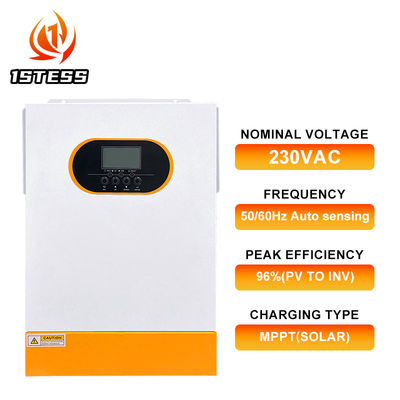

48V 5.5kw 6.2kw Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverters with Detachable Dust Cover
| Место происхождения | Гуандун, Китай |
|---|---|
| Фирменное наименование | COENG |
| Сертификация | CE, IEC |
| Номер модели | EM (PV60-500VDC) 6200 48L |
| Документ | EM1.5-6.2.pdf |
| Количество мин заказа | 1 |
| Упаковывая детали | Картон, поддон |
| Время доставки | 10-30 дней |
| Условия оплаты | L/C, T/T, Western Union |
| Поставка способности | 20000 штук/месяц |
Свяжитесь я бесплатно образцы и талоны.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Скайп: sales10@aixton.com
Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.
xПодробная информация о продукте

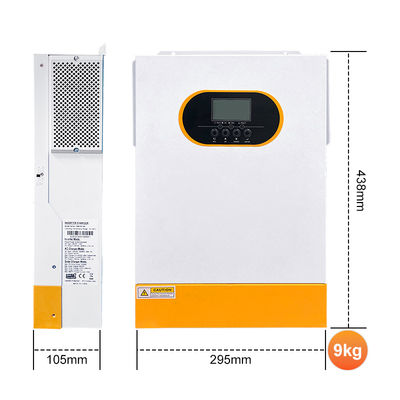

| Размер | 438*295*105 мм | Напряжение аккумулятора | 24 В/48 В. |
|---|---|---|---|
| Входное напряжение | 230VAC | OEM | Принять OEM |
| Тип инвертора | Гибридный солнечный инвертор | Вывод типа | Одиночная, чистая сисяная волна |
| Вес брутто | 9 кг | ||
| Выделить | 48V hybrid solar inverter with MPPT,5.5kW off grid solar inverter,pure sine wave solar inverter |
||
Характер продукции
| EM3500-24L | EM5500-48L | EM6200-48L | |
|---|---|---|---|
| Model Number | EM3500-24L | EM5500-48L | EM6200-48L |
| Place of Origin | China | China | China |
| Mounting Method | Wall Bracket | Wall Bracket | Wall Bracket |
| Nominal Battery Voltage (V) | 24VDC | 48VDC | 48VDC |
| Lithium Battery activation | YES( By PV or Utility) | YES( By PV or Utility) | YES( By PV or Utility) |
| Nominal Voltage | 230VAC | 230VAC | 230VAC |
| Lithium Battery communication | YES(RS485) | YES(RS485) | YES(RS485) |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Waveform | Pure Sine wave | Pure Sine wave | Pure Sine wave |
| Solar Charger Type | MPPT | MPPT | MPPT |
| Communication Interface | RS232+RS485 | RS232+RS485 | RS232+RS485 |
| PV Array MPPT Voltage Range | 60VDC~500VDC | 60VDC~500VDC | 60VDC~500VDC |
| Surge Power | 7000VA | 11000VA | 1240VA |
| Size | 358*295*100mm | 438*295*105mm | 438*295*105mm |
| Weight | 7kg | 9kg | 9kg |
| Operating Temperature Range | (-10'℃ to 50℃) | (-10'℃ to 50℃) | (-10'℃ to 50℃) |
Product Features
- Lithium battery activation function by PV or Utility
- Compatible work with lifepo4 battery via Rs485
- PVInput 500Vdc Max
- Built-in MPPT60A/100A/120A
- Detachable dust coverforharsh environment
- Wifi remote monitoring optional
- Support multiple output priority:UTL,SOL,SBU,SUB
- EQ function to optimize battery performance and extend lifecycle
Company Introduction
Shenzhen First Tech Co., Ltd was established in 2017, which is a one-stop solution provider of solar & battery energy storage system.
First Tech is engaged in the research, development, production, sales and service of the commercial and industrial energy storage system, home energy storage system, lithium-ion battery pack, solar hybrid inverter. solar optimizer etc.
First Tech is located in Shenzhen City, Guangdong Province, China, the factory have passed lS09001,1S014001,1S045001 managementsystem certification and the products have obtained TUV-CB, CEIEC,EMC MSDS, UN38.3, etc certificates. The products are exported toclients in such countries and regions as Europe, Africa, Middle East,North America,South America, Southeast Asia, etc.
Except providing it's own standard products, First Tech also welcome OEM & ODM orders, and will provide professional service and quality products with competitive prices to customers and market.
First Tech is committed to becoming a global leading solar & ESS solution provider to provide green energy and contribute to cleanerworld.
Enjoy New Life, Starting with First Tech!
