Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control

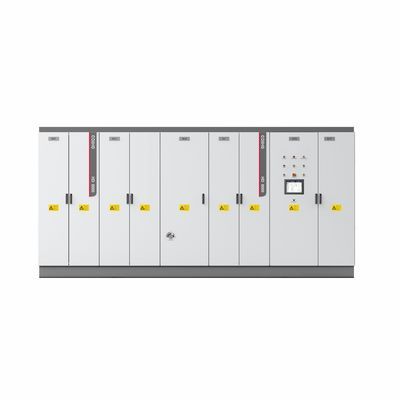

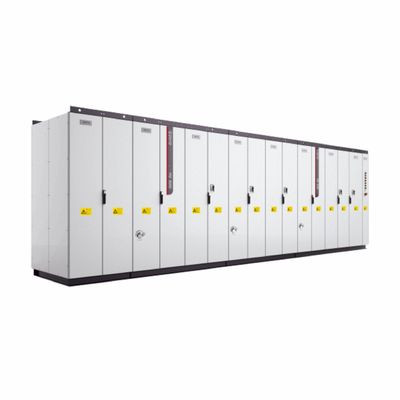

HD8000 series VFD is a high-power drive system includes AC-DC-AC comverter and DC-AC common DC bus multi-axis motor drive unit. The maximum power can reach 30MVA for single machine and 60MVA for parallel operation. Its modular hardware and engineering software design concept enables it to operate for various complex conditions.

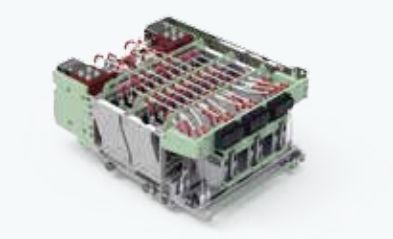

HD8000 series VFD adopts presspack IGCTand Diode as well as liquid cooling method, the whole machine meets the protection level IP54 and it has super environmental adaptability, high reliability, excellent heat dissipation performance and small volume, there are two-quadrant and four-quadrant rectification solutions.

• Characteristics: single/multiple axis drive, IP54 protection, two-quadrant/four-quadrant
• Design: modular design
• Rectification: multi-pulse basic rectification, smart rectification and PWM rectification
• Voltage rate: 1900V3000V (3300V), 6000V, (6600V), 10000V
• Maximum power: 30MVA (single) 60MVA (parallel)
• Compitable motor: asynchronous induction motor, permanent magnet synchronous motor, Electrically excited synchronous motor
• Control method: V/F, close-loop vector control with sensor, open-loop vector control without sensor
• Cooling: water cooling

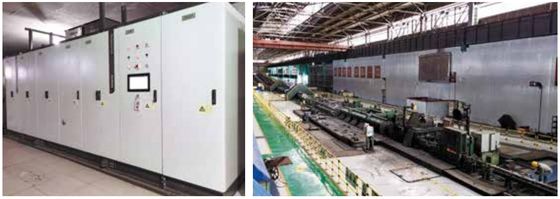

• Metallurgical Engineering
• Oil and Gas Transportation
• Testing Platform
• Renewable Energy
• Rail Transportation
• Mining&Lifting
• Marine Equipment
• LNG
• Power Source
• Energy Storage

• Suitable for automotive and manufacturing sectors.
• Handles voltage variations common in industrial parks.
• High starting torque for heavy machinery.
• Easy installation reduces setup time and cost.
• Water-cooling system ideal for hot climates.
• Compatible with Baldor and other common motor brands.
• Robust protection systems enhance safety.
• Low total cost of ownership.

• Bridges European and Asian motor standards.
• High power factor correction reduces penalties.
• Suitable for textile, marine, and construction sectors.
• Resilient to seasonal temperature variations.
• Easy to maintain with local service networks.
• Scalable from medium to high power applications.
• Supports both 3300V and 6600V systems.
• Long warranty and reliable performance.

• Operates reliably in cold climates with built-in heaters.
• High altitude capability for Rocky Mountain operations.
• Suitable for pulp & paper, mining, and hydroelectric plants.
• Complies with CSA and UL standards.
• Energy-efficient operation aligns with green initiatives.
• Easy to interface with existing Allen-Bradley systems.
• Low vibration and noise for urban installations.
• Remote monitoring and diagnostics support.

• Resistant to high humidity and salt corrosion.
• Ideal for palm oil, mining, and marine applications.
• Handles frequent power outages with smooth restart.
• Simple user interface for easy operation.
• Local service teams available for quick support.
• High overload capacity for processing machinery.
• Affordable maintenance and spare parts.
• Compatible with local and international voltage levels.

• Built for extreme heat and dusty conditions.
• Ideal for oil, gas, and HVAC applications.
• 10kV models reduce cabling costs in large plants.
• High reliability reduces downtime in critical processes.
• Meets IEC and local regulatory standards.
• Easy to scale with modular design.
• Advanced diagnostics for predictive maintenance.
• Low energy consumption supports sustainability goals.
